Blue-control Energy-Harvesting Bluetooth Motion Detector
Model: 867202018
Description
Solar-powered PIR motion detector, white. Supply Integrated solar cell. Commissioned and controlled over Bluetooth Mesh from the Blue-control app. Indoor radio range up to 10 m. Protection class IP20.
Original Product Page
Technical Specifications
Power Supply
Supply
Integrated solar cell (energy harvesting)
Backup Battery
CR2032
Operation Without Sunlight
96hours
Radio
Antenna
Integrated
Frequency
2.4GHz
Technology
Bluetooth 5 Mesh
Range (indoor)
10m
Range (free field)
75m
Output Specifications
Max. Switching Power
1000 W
Logistics
EAN
4008224669764
Article Number
867202018
Packaging Unit
5
Electrical Specifications
Supply Voltage
Integrated solar cell
Mechanical
Colour
White
Weight
83g
Material
Plastic
RAL Number (similar)
9016
Dimensions
113.2 × 65.5 × 30.7 mm
Material Grade
Thermoplastic
Ingress Protection
IP20
Environmental Specifications
Storage Temperature
0°C to 60°C
Operating Temperature
0°C to 60°C
Measurement
Scan Angle
180°
Max. Detection Area
157m²
Detection Radius
5m (mounted at 2.5 m height)
Max. Switch-On Time
30 min
Min. Switch-On Time
5 s
Light Level Sensor
0lux to 65000lux
Transmission Interval
Every 2 minutes
More products

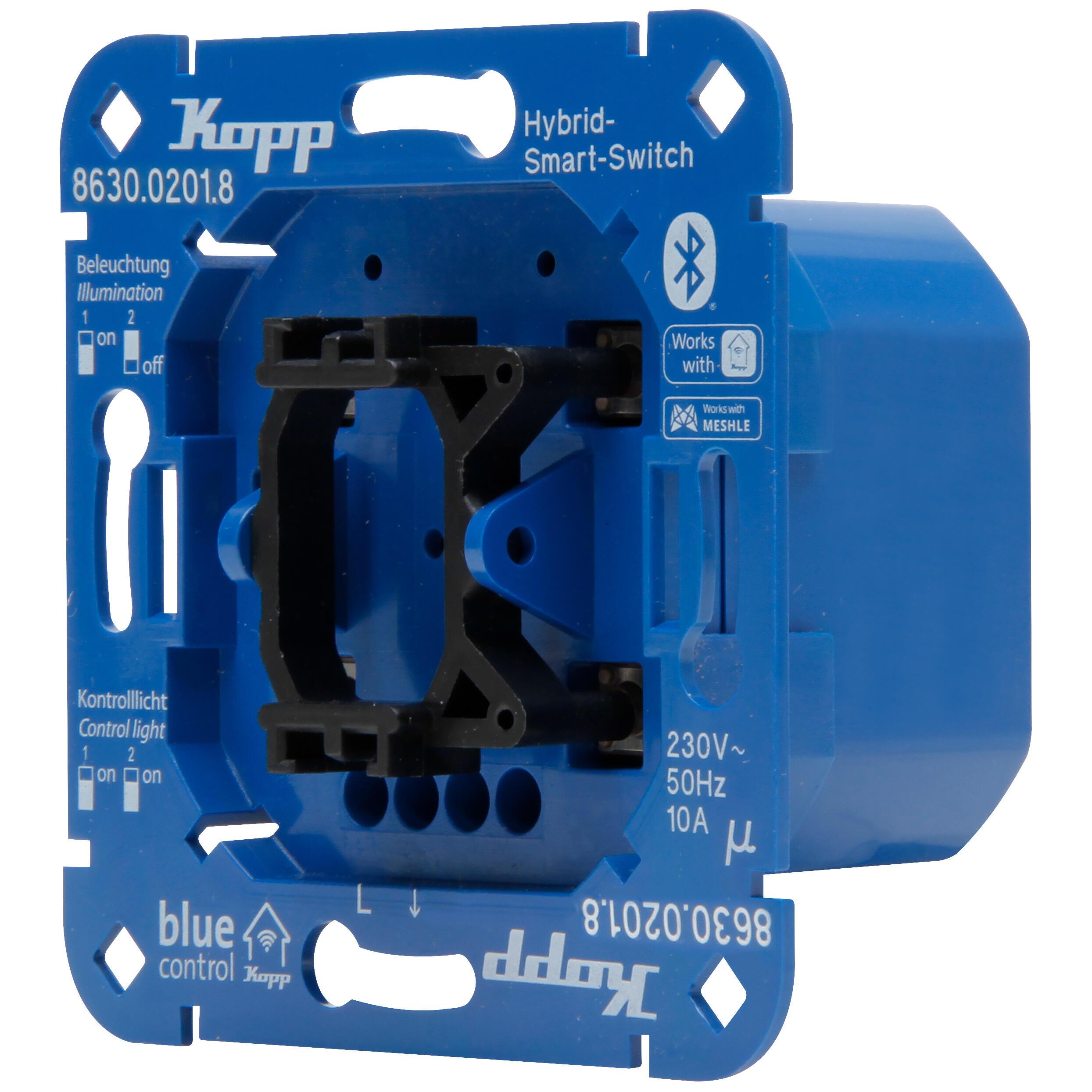

Blue-control Hybrid Smart Switch, 1-Channel, 2-Wire
863002018
Blue-control Energy-Harvesting Bluetooth Multi-Sensor
867102015

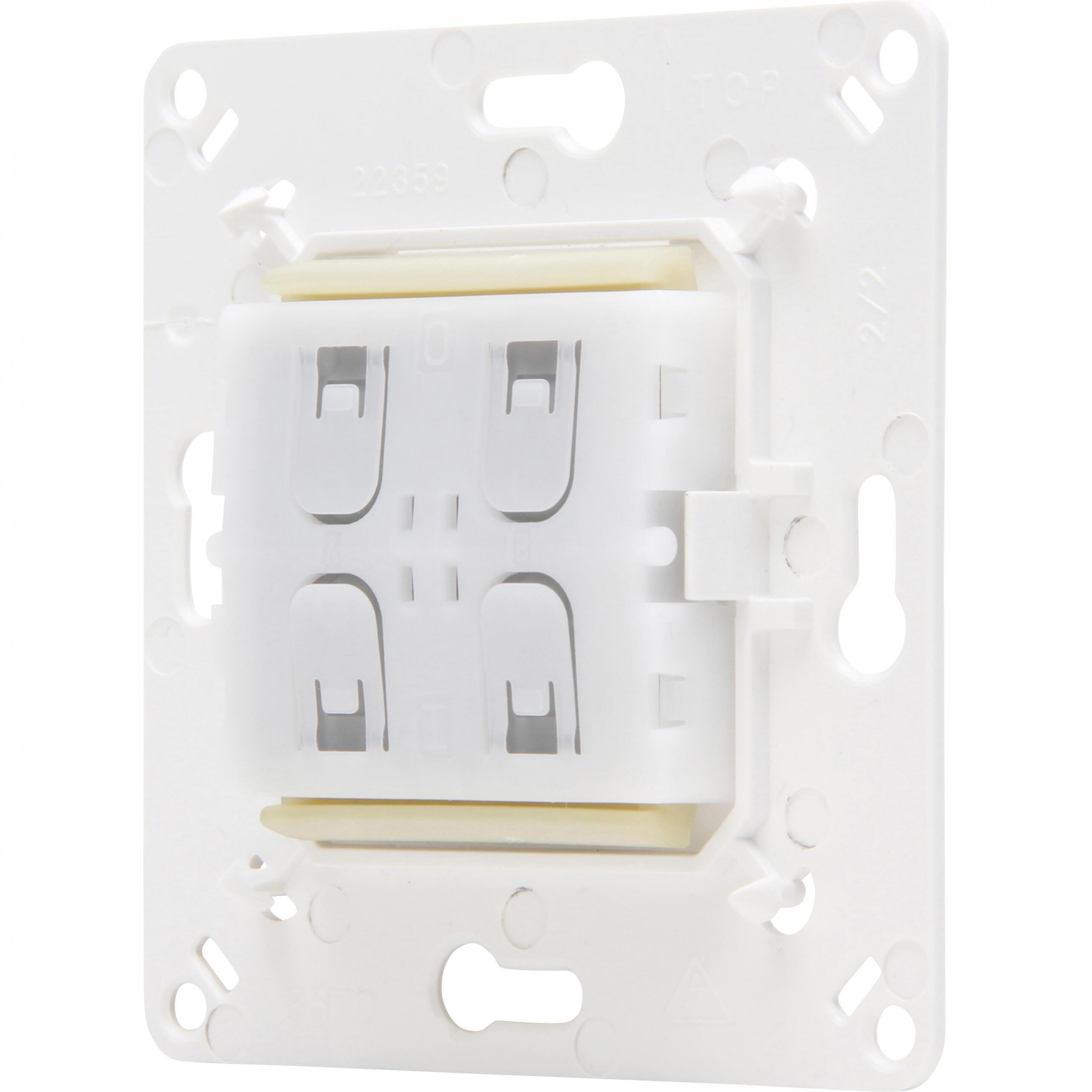

Blue-control Energy-Harvesting Bluetooth Wall Switch Module
867001011
Blue-control Hybrid Smart Shutter Switch, 2-Channel, 4-Wire
863004034
Low Voltage PIR Bi-level Occupancy Sensor
ANT-4E-6

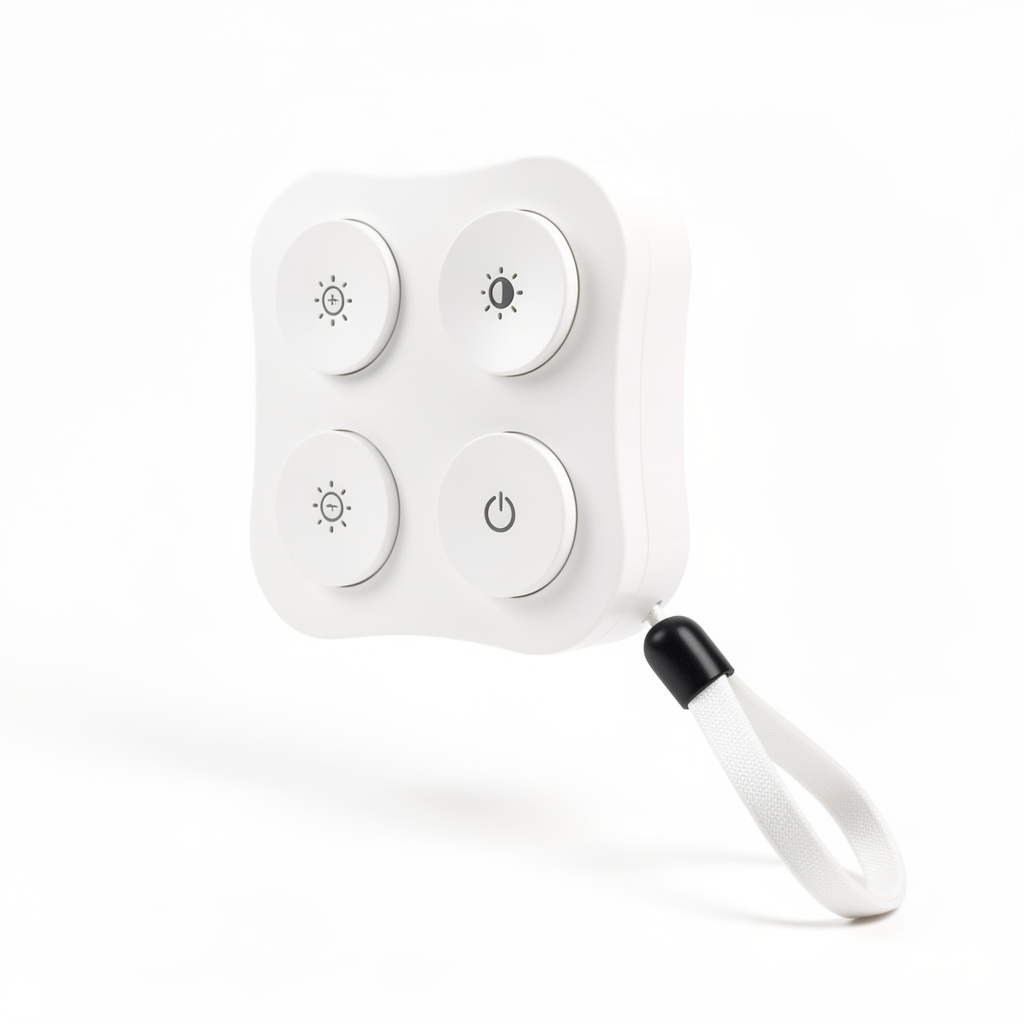

P1 wireless kinetic
