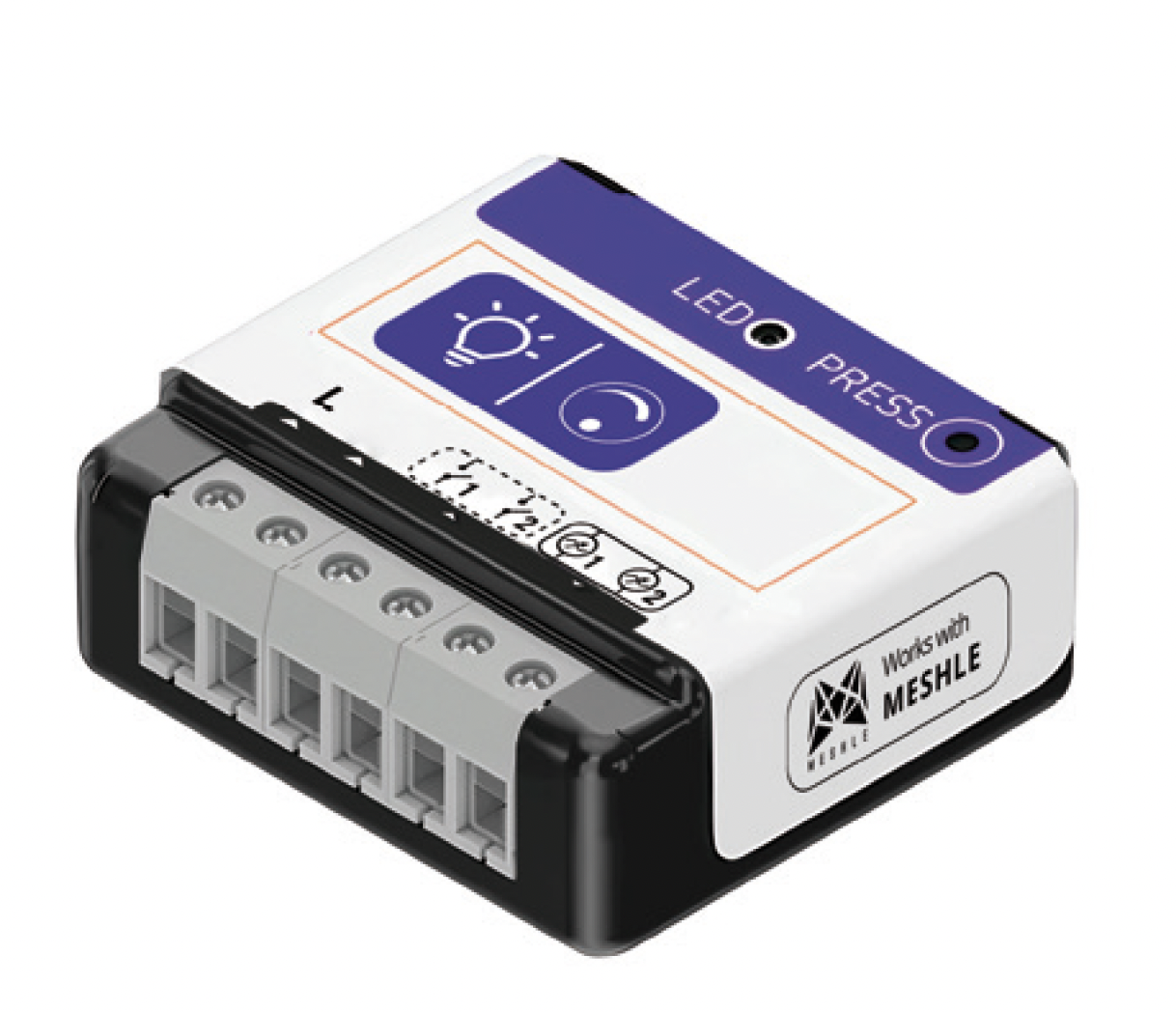

Blue-control Hybrid Smart Switch, 1-Channel, 2-Wire
Model: 863002018
Description
Wall switch and Bluetooth Mesh actuator in one. Supply 230 V AC +/- 10 %. Rated load 7 – 200 W. Commissioned and controlled over Bluetooth Mesh from the Blue-control app. Protection class IP20.
Original Product Page
Technical Specifications
Radio
Antenna
Integrated
Frequency
2.4GHz
Code Length
128bit
Technology
Bluetooth 5 Mesh
Transmit Power
< 10 mW
Output Specifications
Relays
0
Channels
1
Load Current
7 – 200 W
Resistive Load
7 – 200 W
Switching Contact
MOSFET
Switchable Voltage
230 V AC
Features
Amazon Alexa
Yes
Halogen-Free
No
Apple HomeKit
No
Google Assistant
Yes
Mounting
Mounting Type
Flush-mounted
Fixing
Other
Logistics
EAN
4008224660334
Article Number
863002018
Packaging Unit
1
Electrical Specifications
Supply Voltage
230 V AC +/- 10 %
Mains Frequency
50Hz
Mechanical
Colour
Blue
Material
Plastic
RAL Number (similar)
5005
Material Grade
Thermoplastic
Ingress Protection
IP20
Surface Protection
Untreated
Environmental Specifications
Storage Temperature
-30°C to 80°C
Operating Temperature
-20°C to 60°C
