MESHLE QR-Display – E-Ink QR-Code Display for MESHLE Guest Control
Model: MQR-100
Description

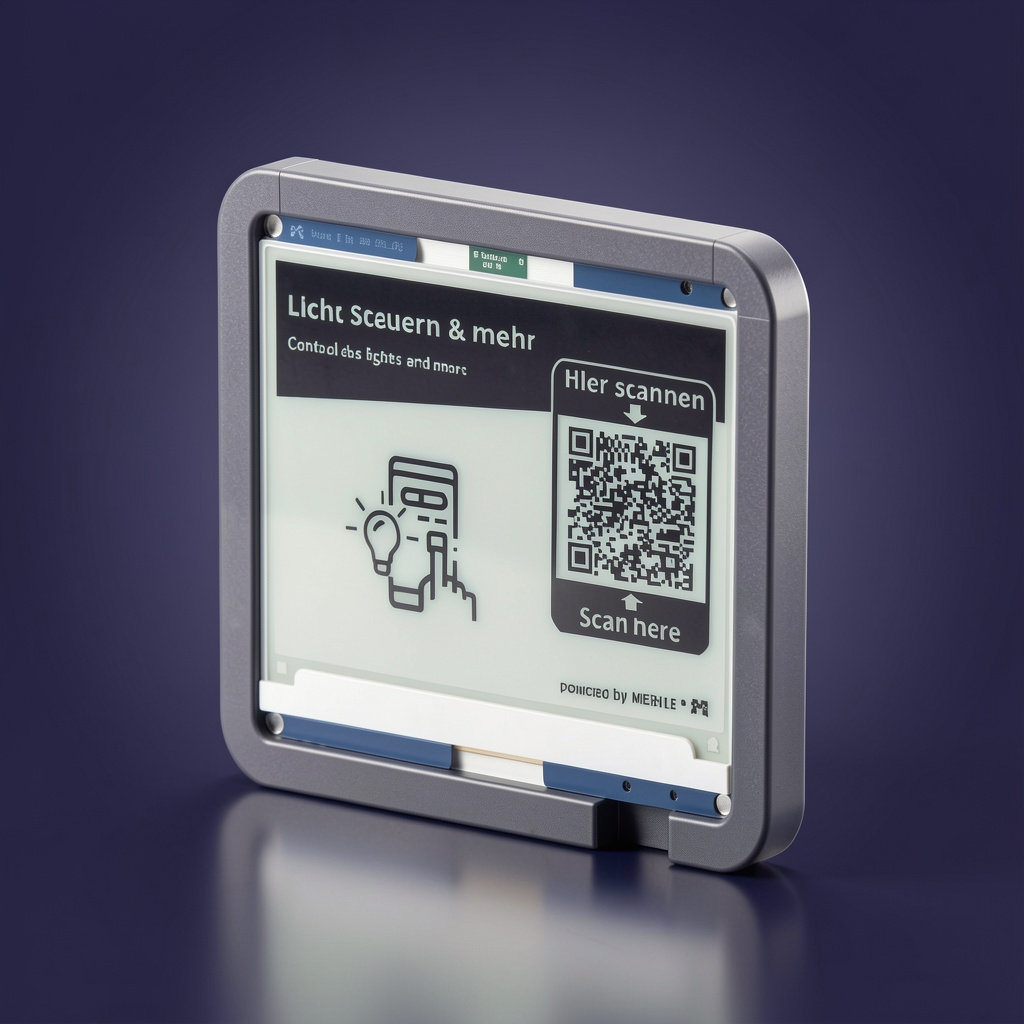

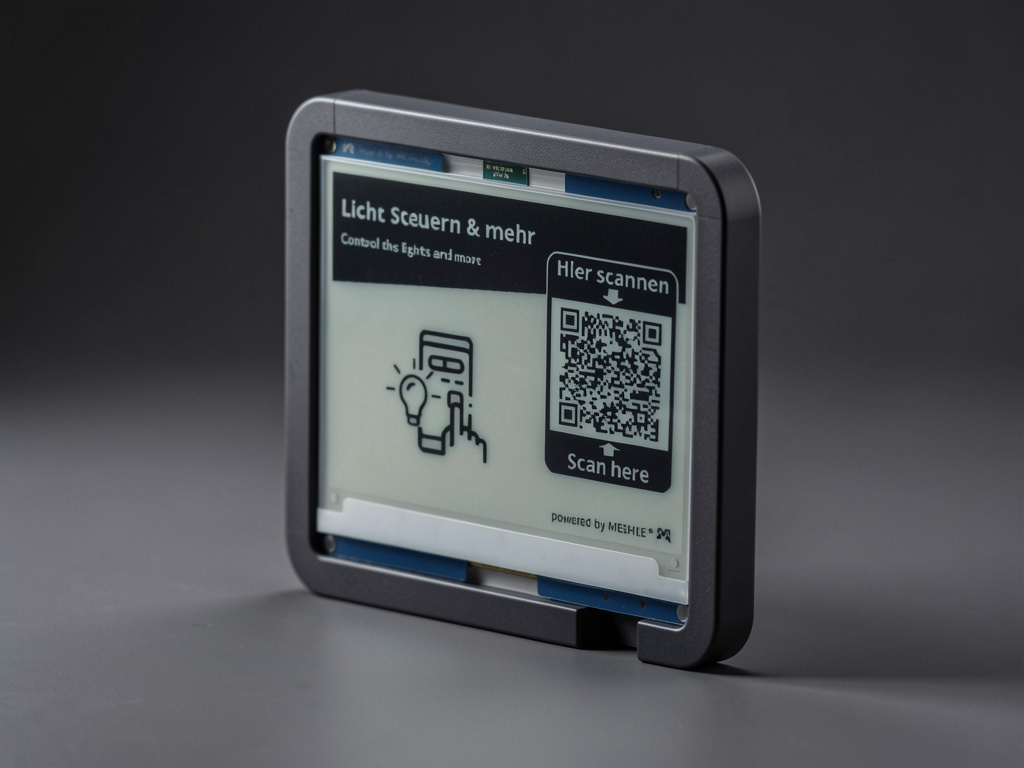

The MESHLE QR-Display is an e-paper display that generates a temporary QR code to provide users access to a Bluetooth Mesh network. This web-based access does not require app installation, and it is ideal for hotel rooms or exhibitions to control smart devices via MESHLE.
Key Features:
• Large 4.2 E-Ink Display
• Simple configuration via Bluetooth
• Works as a MESHLE Bluetooth® Mesh node
• Secure communication – all communication is encrypted
• USB-C power supply
Technical Specifications
Input Voltage
USB-C 5V DC
Input Current
<1A
Operation Temperature
-10° to +55°
Operation Humidity
10% to 90% RH
Wireless Technology
Bluetooth single point/mesh
Wireless Frequency
2.402-2.480 GHz
Transmitting Power
+8dBm
Transmitting Rate
Bluetooth 5: 2 Mbps, 1 Mbps, 500 kbps, 125 kbps
Antenna Type
Built-in on-board
Gallery
More products
MESHLE Gateway – Wi-Fi - Bluetooth Mesh Gateway with Matter Connectivity
M602
MESHLE flex ZERO – 4 Channel Inventronics UART LED Controller
MESHLE flex ZERO U
IC EC BLE ML W
167746
Low Voltage PIR Bi-level Occupancy Sensor
ANT-4E-6
ID ELNCB 110/230/100-900 SKY NFC TW
166800

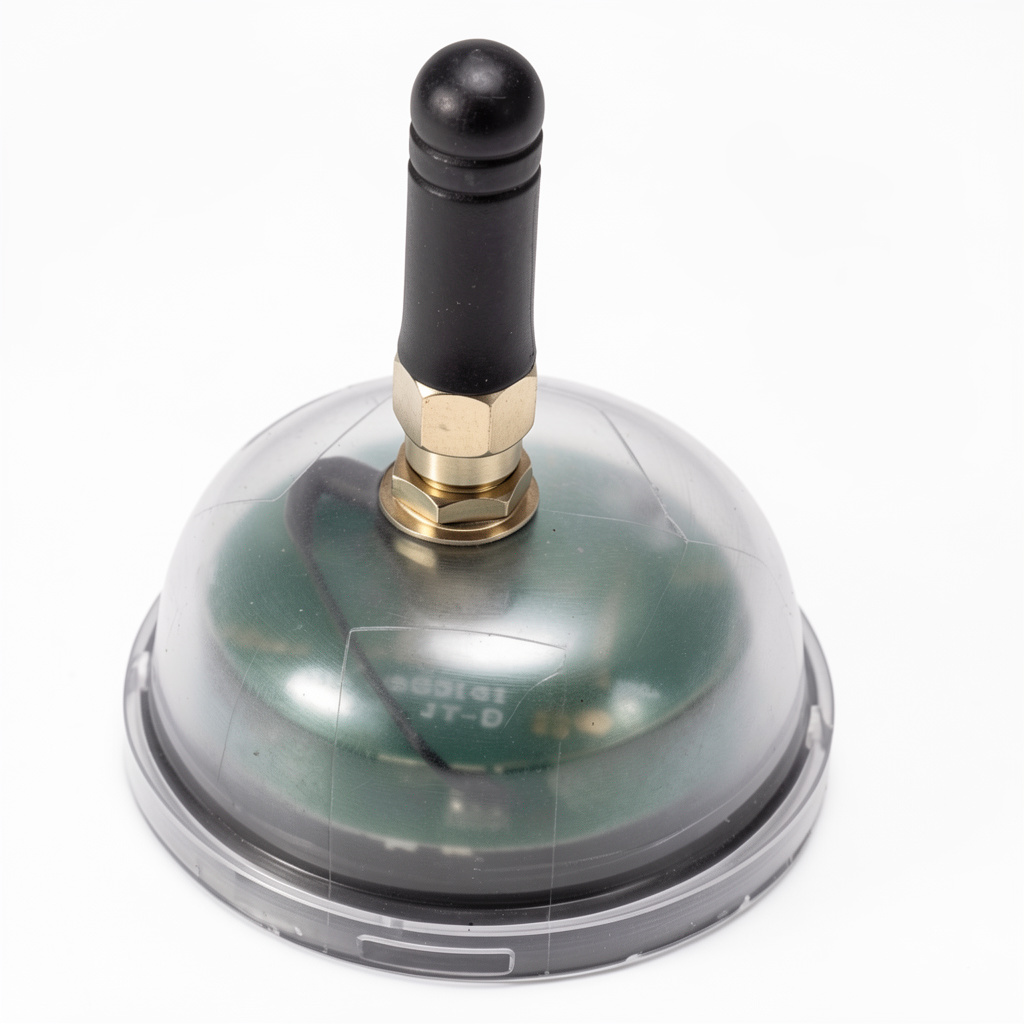

MESHLE Mesh Outdoor Controller with Long Range Antenna
