MESHLE Gateway – Wi-Fi - Bluetooth Mesh Gateway with Matter Connectivity
Model: M602

Description
The product is a Wi-Fi to Bluetooth Mesh Bridge designed for bidirectional communication. It serves as a conduit between Wi-Fi networks and Bluetooth Mesh networks, enabling seamless integration and management within smart environments.
Key Features:
• Wi-Fi to Bluetooth Mesh Bridge for bidirectional communication
• Simple configuration of the Wi-Fi credentials via Bluetooth
• Works as a regular Bluetooth Mesh node, relaying all mesh commands into the mesh network and LAN
• Secure communication – all communication is encrypted for both Wi-Fi and Bluetooth Mesh
• Multiple gateways with different cloud accounts can be installed in the same Bluetooth Mesh network
• Three LEDs for connection status identification
• USB-C power supply
• Communication with MESHLE Cloud (Germany) or local network via IP address
Technical Specifications
RF Characteristics
IC
wifi
21098-ESPS-3WROOM1
bluetooth
8017A-MD-BT50Q
FCC
wifi
2AC7Z-ESPS-3WROOM1
bluetooth
SH6MDBT50Q
specifications
[object Object]
Physical Characteristics
Reset Button
1
Input Current
up to 1A
Input Voltage
5VDC
Type of Antenna
Built in on-board antenna
State Indicator
3LED
Operation Humidity
10-90% (non-condensable)
Wireless Technology
Wi-Fi 802.11 b/g/n, Bluetooth - single point / -mesh
Operation Temperature
-10°C to 55°C
Gallery


More products

NOVA F Bluetooth Mesh Swarm Free Standing Light
NOVA F

MESHLE flex ZERO – 4 Channel Inventronics UART LED Controller
MESHLE flex ZERO U

IC ECSCB 100-277 DALI 0-10 V ML
167562

IC EC BLE ML W
167746

Low Voltage PIR Bi-level Occupancy Sensor
ANT-4E-6

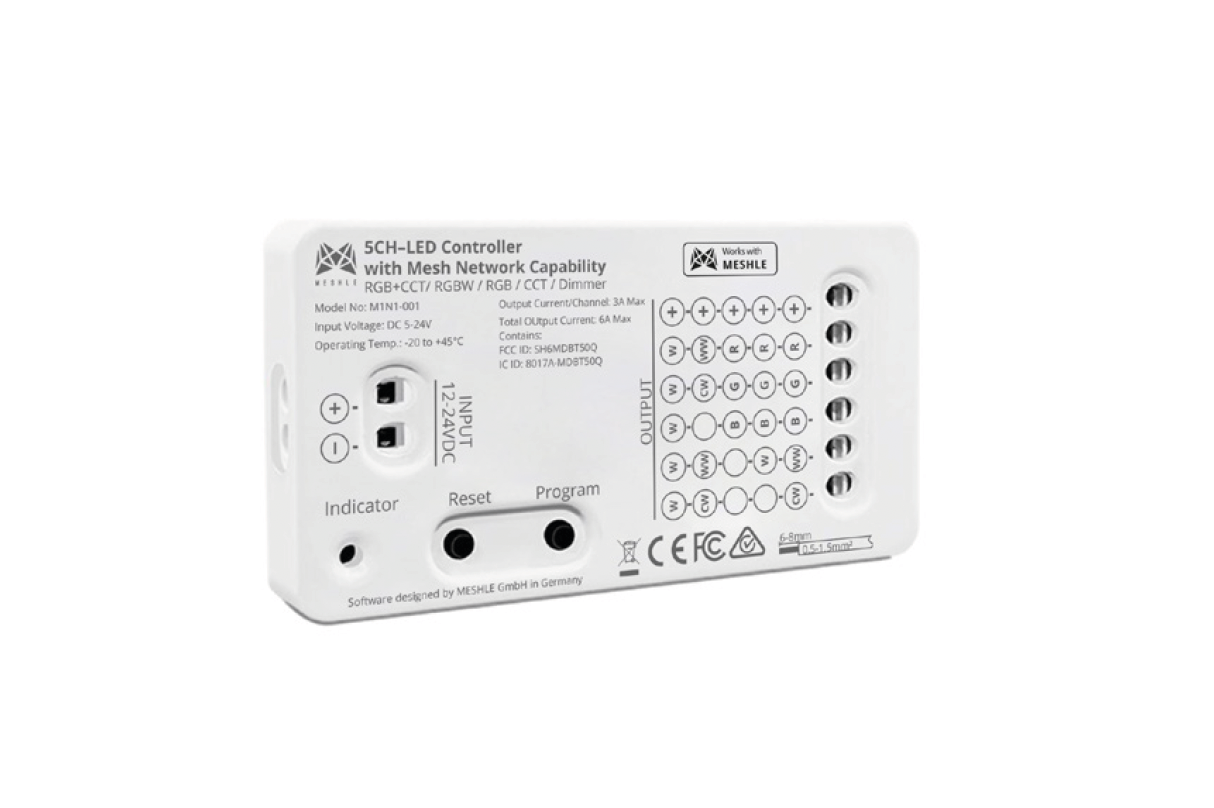

MESHLE flex MINI – 5-Channel Universal LED Driver with Bluetooth Mesh Connectivity
